VA-Tube PH 4G Tube GPS Tracker | IP68 Waterproof for Water Tank & Frame | 3-Year Standby

The "007" of GPS Trackers. PH is a cylindrical 4G tracker designed to hide inside liquids and tubes. Cylindrical Design: Fits in bike frames & wiper kettles. IP68 Waterproof: Can be submerged in water tanks. Install & Forget: Non-rechargeable battery lasts up to 3 years.

Parameters & Specifications

More detailed information

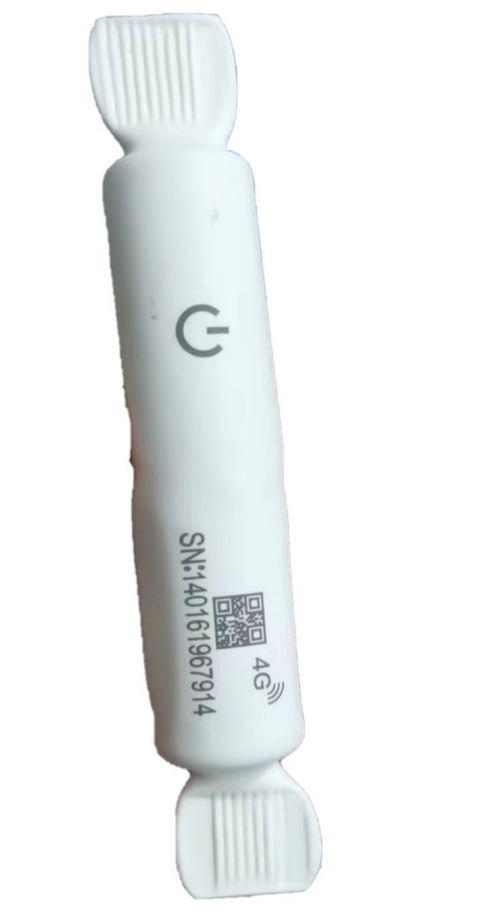

Tube Shape (18mm Diameter): The VA-Tube PH is shaped like a slim rod . It slides perfectly into Bicycle Frames, Scooter Tubes, or Metal Pipes.

Submersible Stealth: Designed to hide inside the Car Wiper Fluid Kettle or Water Tank. It looks like a sensor or a filter, making it virtually undetectable.

Li-SOCl2 Battery Technology: Unlike standard lithium batteries that drain quickly, the PH uses a 1500mAh Disposable Lithium Thionyl Chloride battery.

Ultra-Low Self Discharge: Loses less than 1% charge per year.

Long Lifespan: Theoretical standby time up to 1000 Days (based on WiFi priority mode). No need to recharge. Just replace the unit after years of service.

WiFi Priority: Inside buildings or garages, it locates via WiFi signals (very low power).

LBS Backup: If no WiFi, it uses 4G Base Stations.

Satellite Capable: Supports GPS/BeiDou/GLONASS for precise tracking when needed.

Alarm Clock Mode: Wakes up only at scheduled times (e.g., once a day) to report location, then goes back to deep sleep to avoid detection by signal scanners.

✅ Perfect For	❌ NOT Recommended For
Hidden Asset Tracking: Hiding inside tubes, frames, construction materials.	Real-Time Tracking: This is not for second-by-second tracking. It is for daily reporting.
Water Tanks: Waterproof design allows liquid submersion.	Recharging: The battery is disposable. Once dead (after ~3 years), you must replace the device/battery.
Leasing/Finance: Long-term recovery device.	Small Parcels: Length is 128mm, might be too long for small boxes.

Battery: 3V 1500mAh Li-SOCl2 (Non-rechargeable).
Dimensions: 128mm × 18mm × 18mm.
Net Weight: 60g.
Positioning: WiFi + LBS + GPS/BDS.
Working Temp: -30℃ to +80℃.

Technical Parameter	Specification Details
Model Name	VA-Tube
Shape	Cylindrical
Battery Type	Disposable Li-SOCl2
Standby Time	~1000 Days
Waterproof	IP68
Network	4G Full Netcom
Dimensions	128mm × 18mm × 18mm
Weight	60g
Positioning	WiFi Priority / LBS / GPS / BDS
Installation	Adhesive / Magnetic / Inside Liquid

1. ⚠️ BATTERY WARNING (Very Important)

DO NOT CHARGE: This device uses a Disposable Li-SOCl2 Battery. It is NON-rechargeable. Attempting to charge it may cause fire or explosion.
Lifespan: Designed for long-term standby (up to 3 years depending on frequency). Once the battery is dead, the device must be replaced.

2. Installation Secrets

Waterproof: The cap must be tightly screwed on to achieve IP68 protection before putting it into water tanks or wiper kettles.
Antenna: Although cylindrical, try to install it with the Barcode Side facing UP towards the sky for the best signal.

3. Indicator Lights Status
